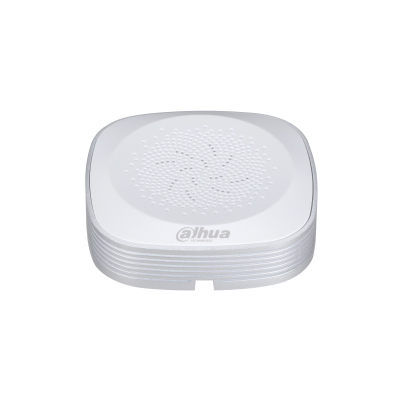

Dahua HAP200

Product Selector Use one of the options below to locate your desired product. Model DH-HAP200 General Scope 10~100 m2 Sensitivity -30dB Frequency response 20Hz～20kHz Directional characteristic Omni-directional SNR 80dB(1m 40dB sound source SPL) 50dB(10m 45dB sound source SPL) 1kHz at 1Pa Dynamic range 104dB(1KHz at Max dB SPL) Max. sustainable sound pressure 120dB SPL(1KHz, THD 1%) Output impedance 600Ω(non-equilibrium) Output signal amplitude 2.5Vpp/-25dB Microphone Electret condenser microphone Working voltage DC 12V(9~18V) Working current 50mA Working temperature -25ºC~+70ºC(-13℉~+158℉) Material PC+ABS Color White+silver Dimension 79.6mmx79.6mmx21.5mm (3.13”x3.13” x0.85”) Weight 0.06kg(0.13lb) Certification CE/FCC
