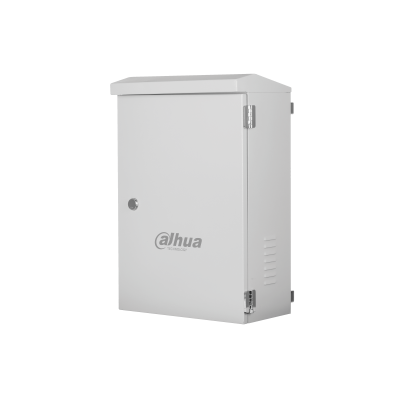

Dahua PFM377-D2440, фото 2

Dahua PFM377-D2440

Описание
Характеристики
Информация для заказа
Model DH-PFM377-D2440 Control Part Controller type MPPT System voltage 12VDC/24VDC Auto Max. battery voltage 9VDC~70VDC Max. power point voltage range Battery voltage+2VDC~75VDC Rated charging current 40A Rated load current 20A Max. capacitive load capacity 10000µF Max. input open voltage of solar panels 100V(25℃); 90V(-25℃) Max. input power of solar panel 550W/12VDC; 1100W/24VDC MPPT tracking efficiency >99% Conversion efficiency ≤98% protection Input power limit protection, reverse protection, overload protection, input shirt circuit protection of solar energy, load short circuit protection, anti-recoil protection at night, over-temperature protection No-load loss 0.7W~1.2W Communication mode RS232/RS485 Distribution Part DC circuit breaker 2P/40A/DC500V Lightning arrester of DC power 24VDC/20kA Distribution box Material 1.2mm thick SUS201+spraying Dimension 600mmx400mmx226mm(23.62”x15.75”x8.9”) Installation method Pole mount, Ø 180mm~Ø 300mm(Ø7.09”~Ø11.81”) Color RAL7035 Protection degree IP54 Fan 2*fans, automatic temperature control(45ºC±3ºC) Overall working temperature -35℃~+55℃(-31℉~131℉) Altitude ≤3km Weight 17kg(37.48lb) Package dimension 610mmx410mmx236mm(24”.02x16.14”x9.29”)
Основные атрибуты
Производитель  Dahua Technology
Страна производительКитай
Изображение картинкиЦветная
Общие
Гарантийный срок  12 (мес)
  • Цена: 293 000 Тг.
