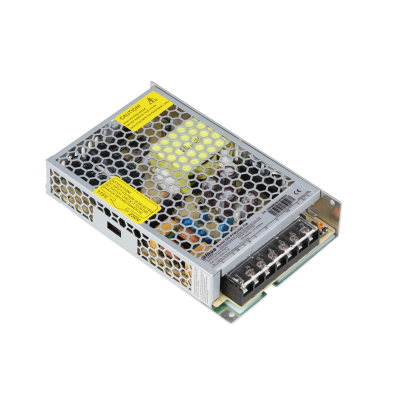

Dahua DH-PFM320S-75
Описание
Характеристики
Информация для заказа
Model DH-PFM321S-75 Electrical Specification Input Voltage Range 90~264Vac Efficiency 88.0% (@230Vac) Output Voltage 24Vdc (terminal output) Out Voltage Tolerance ±5% Adjustable Range for DC Voltage ±10% (21.6Vdc~26.4Vdc) Rated Output Current 3.2A Output Power 75W No Load Power Consumption <0.4W Protection/Environmental Surge Protected Line to ground: ±2000V Line to line: ±1000V ESD Contact discharge: ±6000V Air discharge: ±8000V Working Temperature -20℃~+50℃(60% output at +70℃) -4℉~+122℉(60% output at +158℉) Working Humidity <90% RH Physical Properties Weight 0.3kg(0.44lb) Dimension(LxWxH) 129mmx97.5mmx30mm (5.08”x3.84“x1.18”) Installation Wall mount/Ceiling mount Color Metallic silver Safety Standards Certification CE, FCC Ordering Information Type Part Number Description Power series DH-PFM320S-50 DC12V 50W switching power supply DH-PFM320S-150 DC12V 150W switching power supply DH-PFM321S-75 DC24V 75W switching power supply
Основные атрибуты | |
---|---|
Производитель | Dahua Technology |
Страна производитель | Китай |
Изображение картинки | Цветная |
Общие | |
Гарантийный срок | 12 (мес) |
- Цена: 8 000 Тг.
