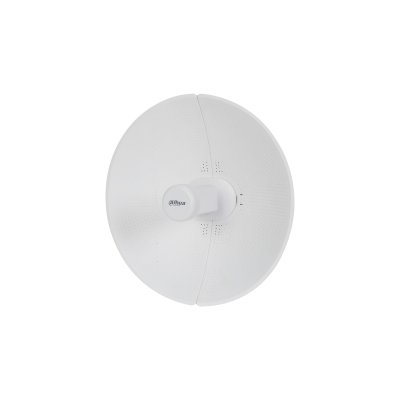

Dahua PFM886-15

Model DH-PFM886-15 Wireless Features Wireless Standard IEEE802.11 a/n/ac Working Frequency 5745~5825MHz (support frequency to extend, extended range: 4920~6100MHz) Wireless Speed 867Mbps Modulation Mode OFDM Antenna 23dBi Output Power 27dBm (max) Receiving Sensitivity 11a： 6Mbps -91 dBm 54 Mbps -72dBm 11n： MCS0 -85 dBm MCS7 -67dBm 11ac：MCS0 -85 dBm MCS9 -60dBm Transmission Distance ≤15km Wireless Direction Angle Horizontal 10°, vertical 10° Hardware Power 1*PoE RJ45 (PoE input via PoE switch or PoE adapter) Power Consumption ≤25W Ethernet Port 1×10/100M/1000MBase-TX (Cat. 5/5E, RJ-45) Indicator Light 3×Link Quality Working Temperature -30℃～+70℃ Storage Temperature -40℃～+85℃ Working Humidity 5%～95%RH(no condensation) Equipment Dimension 240mmⅹØ373mm Equipment Weight 0.94kg Software Encryption Type 802.1x/WPA-PSK/WPA2-PSK Network Mode Route/Network Bridge Working Mode Access Point/Client/WDS AP/WDS client/WDS Repeater Security Mechanism IP/MAC address filtering, hide network name Network Protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP TDMA Enhancement Support Auto ACK Timing Adjustment Support Management and Log NTP，Syslog，Telnet，AC，SNMP Webpage Configuration Management Web, SNMP, Access Controller Firmware Update Web, Access Controller Bandwidth Flexible Configuration 10/20/40/80MHz
