Dahua DH-KIT/NVR4104HS-W-S2/4 HFW1320S-W-0360B, фото 2

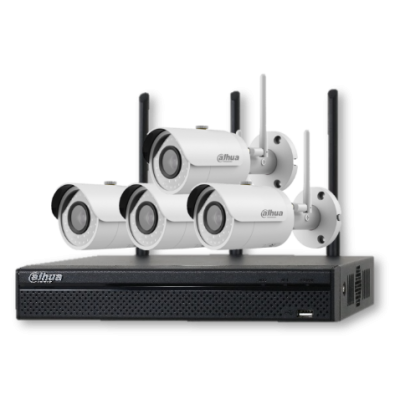

Dahua DH-KIT/NVR4104HS-W-S2/4 HFW1320S-W-0360B

Описание
Характеристики
Информация для заказа
Model DH-KIT/NVR4104HS-W-S2/4-HFW1120S-W-0360B System Main Processor Dual-core embedded processor Operating System Embedded LINUX Video & Audio IP Camera Input 4 channel Two-way Talk 1 channel Input,1 channel Output, RCA Display Interface 1 HDMI, 1 VGA Resolution 1920 × 1080 , 1280 × 1024, 1280 × 720 ,1024 × 768 Display Split 1/4 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Recording Compression H.264/MJPEG Resolution 6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. Record Rate 80Mbps Bit Rate 48Kbps ~ 8192Kbps Per Channel Record Mode Manual, Schedule (Regular, Continuous), MD(Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec Video Detection Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank Playback & Backup Sync Playback 1/4 Search Mode Time/Date, MD & Exact search (accurate to second), Smart search Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom Backup Mode USB Device/Network/Internal SATA burner Network Ethernet 1RJ-45 port (10/100Mbps) Wireless Network Built-in Wifi module, 2 WiFi Antenna Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.) Max User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, CGI Conformant Storage Internal HDD 1 SATA III Port, Up to 6TB capacity for each HDD Auxiliary Interface USB 2 USB Ports (1 Rear USB2.0, 1 Front USB2.0 ) General Power Supply DC12V/2A Power Consumption NVR: 10W (without HDD) Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0 ~ 90% RH, 86 ~ 106kpa Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Camera Image Sensor 1/3” 3Megapixel progressive CMOS Effective Pixels 2304(H) x1536(V) Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3(4)~ 1/100000s Min. Illumination 0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on) S/N Ratio More than 50dB Camera Features Max. IR LEDs Length 30m IR On/Off Control Auto/ Manual IR LEDs 24 Day/Night Auto(ICR)/Color/B/W Backlight Compensation BLC/HLC/DWDR White Balance Auto/Manual Gain Control Auto/Manual Noise Reduction 3D Privacy Masking Up to 4 areas Lens Focal Length 3.6mm Max Aperture F2.0 Focus Control Manual Angle of View H:77°, V:42° Lens Type Fixed lens Mount Type Board-in Type Video Compression H.264/H.264B/H.264H/MJPEG Resolution 3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720)/720P(1280×720)/ VGA(640×480)/QVGA(320×240) Frame Rate Main Stream: 3M(1 ~ 20fps)/2M (1 ~ 25/30fps) Sub Stream: VGA(1 ~ 25/30fps) Bit Rate H264:32K ~ 10Mbps Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP; Wi-Fi Wi-Fi(IEEE802.11b/g/n),50m(open field) Compatibility ONVIF, PSIA, CGI Max. User Access 20 users Smart Phone iPhone, iPad, Android General Power Supply DC12V Power Consumption <4.4W Operating Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH Storage Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH Ingress Protection IP67 Carton Dimension(W×D×H) 386*238*330mm
Основные атрибуты
Производитель  Dahua Technology
Страна производительКитай
ПрименениеВнутренняя
Изображение картинкиЦветная
Режим съемки "День/ночь"  Да
СостояниеНовое
Объектив
Возможность смены объективаНет
Общие
Гарантийный срок  12 (мес)
  • Цена: 170 000 Тг.
